PETER Electronic, VERSISTART P III (24~580A) series soft starters

send
PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

  • Three-phase controlled digital soft starter (11-800kW)
  • Integrated bypass
  • Current and torque reduction during acceleration
  • USB port
  • Comprehensive and customizable motor protection
  • Display graphical LCD — real time graphs of motor operating performance
  • Inside delta (6-wire) connection
  • Degree of protection IP20 up to 135A
  • Motor PTC connection
PETER ELECTRONIC, VERSISTART P III (24~229A) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
Motor rating, kW
Control supply voltage, V    Min. motor load
     Max power dissipation during start
 Max power dissipation in operation
Utilization category
Weight / kg
Price
VS p III 525-24B* C1 / C2      24A 200-525V  11kW
24VDC
5A
4,5W per A
about 35W
AC53b 4,8kg 611 €
VS p III 525-42B C1 / C2      42A 200-525V  18,5kW 24VDC
9A 4,5W per A about 35W
AC53b 4,8kg
651 €
VS p III 525-52B C1 / C2      52A 200-525V  22kW 24VDC
11A 4,5W per A about 35W AC53b 4,9kg
687 €
VS p III 525-69B C1 / C2      69A 200-525V  30kW 24VDC
15A 4,5W per A about 50W AC53b 4,9kg
767 €
VS p III 525-105B C1 / C2     105A 200-525V  55kW 24VDC
21A 4,5W per A about 50W AC53b 5,5kg
993 €
VS p III 525-135B C1 / C2      135A 200-525V  60kW
24VDC
29A
4,5W per A
about 50W
AC53b 5,5kg 1110 €
VS p III 525-184B C1 / C2      184A 200-525V  75kW
24VDC
34A
4,5W per A
about 120W
AC53b 12,7kg 1371 €
VS p III 525-229B C1 / C2      229A 200-525V  110kW
24VDC
44A
4,5W per A
about 120W
AC53b 12,7kg 1527 €

PETER ELECTRONIC, VERSISTART P III (250~580A) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
Motor rating, kW
Control supply voltage, V    Min. motor load
     Max power dissipation during start
     Max power dissipation in operation
Utilization category
Weight / kg
Price
VS p III 525-250B* C1 / C2      250A 200-525V 132kW
24VDC
5A
4,5W per A
about 120W
AC53b 12,5kg 1603 €
VS p III 525-352B C1 / C2
     352A 200-525V 160kW
24V DC
9A
4,5W per A
about 140W
AC53b 15,5kg 1964 €
VS p III 525-397B C1 / C2
     397A 200-525V 185kW 24VDC
11A 4,5W per A about 140W AC53b 15,5kg
2153 €
VS p III 525-410B C1 / C2
     410A 200-525V 220kW 24VDC
15A 4,5W per A about 140W
AC53b 15,5kg
2210 €
VS p III 525-550B C1 / C2      550A 200-525V 280kW 24VDC
21A 4,5W per A about 140W AC53b 19kg
2854 €
VS p III 525-580B C1 / C2      580A 200-525V 315kW
24VDC
29A
4,5W per A
about 140W
AC53b 19kg 2990 €

Technical Information and Features

PETER Electronic, VERSISTART P III (24~580A) series soft starters

Function:
- Adjustable initial start current level up to 600% of nominal rating
- Emergency run
- 2 motor sets: forward or reverse jog direction
- Remote control inputs (2x fixed, 2x programmable)
- Relay outputs (3x programmable)
- 24VDC output
- Analog output
- Divers soft start/stop control types
- Units with 690V upon request

Typical Applications:
- Pumps, ventilators
- Compressors
- Mills, crushers, presses
- Conveying systems
- Drives with high-inertia starting
- Machines with gear units, belt or chain drives

Options (upon request):
- Remote Keypad & Cable (29000.2S801)
- DeviceNet Interface (29000.2S802)
- Ethernet IP Interface (29000.2S803)
- ModBus RTU Interface (29000.2S804)
- ModBus TCP Interface (29000.2S805)
- Profibus Interface (29000.2S806)
- Profinet Interface (29000.2S807)
- Remote Keypad Card (29000.2S808)
- Remote Keypad, Card & Cable (29000.2S809)
- SmartCard Pump Application (29000.2S810)
- Finger protection (from 184A up to 580A, 29000.2S811))

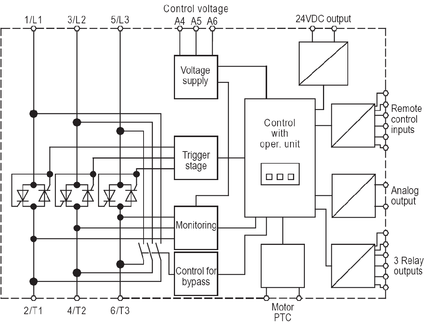

PETER ELECTRONIC, VERSISTART P III (24~580A) SERIES SOFT STARTERS

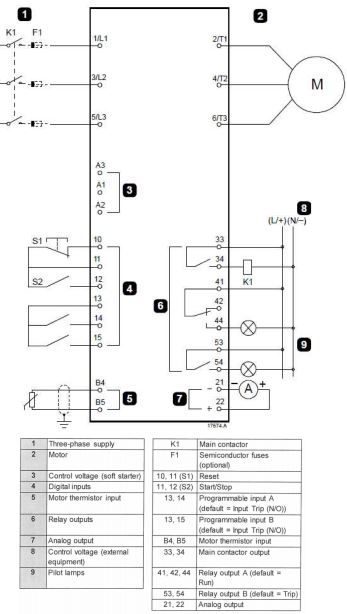

PETER ELECTRONIC, VERSISTART P III (24~580A) SERIES SOFT STARTERS CONNECTION DIAGRAM.

PETER ELECTRONIC, VERSISTART P III (24~580A) SERIES SOFT STARTERS CONNECTION DIAGRAM.

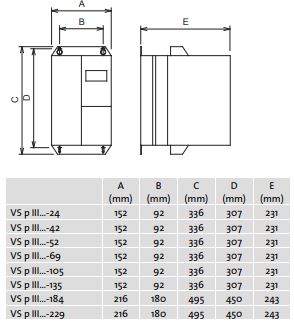

Dimensions:
PETER ELECTRONIC, VERSISTART P III (24~580A) SERIES SOFT STARTERS DIMENSIONS 1PETER ELECTRONIC, VERSISTART P III (24~580A) SERIES SOFT STARTERS DIMENSIONS 2
