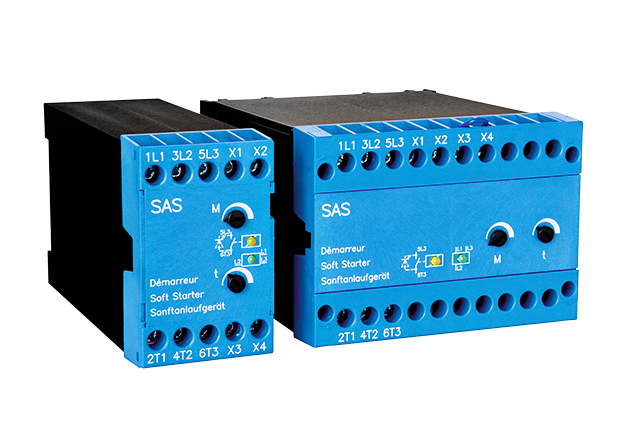

PETER Electronic, SAS (3kW~11kW) series soft starters

send
PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

  • Single-phase controlled soft starter
  • All devices for pole-changing motors
  • Dual-voltage, for 400V and 230V networks
  • Terminal arrangement suitable for switchgear connection
  • For snap-mounting on 35mm standard rail
  • Integrated bypass relay
  • No mains neutral conductor (N) required
  • Special voltages up to 640V '
  • Also for single-phase applications
  • Degree of protection IP 20
PETER ELECTRONIC, SAS (6,5А~45А) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
 Motor rating, kW
 Control supply voltage, V    Max. switching frequency
  Starting time, sec
  Starting voltage
 Restart time, ms Weight / kg
 Price
SAS 3      6.5A 230V / 400V  1,5kW / 3kW
 10 ... 30VDC
240/h
 0,5 … 5s
0 … 50%
 200ms 0,3kg 149 €
SAS 5,5      12A 230V / 400V  3kW / 5,5kW 10 ... 30VDC
200/h 0,5 … 5s 0 … 50% 200ms 0,3kg
 171 €
SAS 7,5      15A 230V / 400V  4kW / 7,5kW 10 ... 30VDC
120/h 0,5 … 5s 0 … 50% 200ms 0,5kg
 190 €
SAS 11      25A 230V / 400V  5,5kW / 11kW 10 ... 30VDC
70/h 0,5 … 5s 0 … 50% 200ms 0,5kg
 239 €

Technical Information and Features

PETER Electronic, SAS (3kW~11kW) series soft starters

Function:
- Soft start
- 2 separately adjustable parameters starting torque, starting time
- Control contact for pole-changing motors

Typical Applications:
- Transformer soft-starter
- Door drives
- Packaging machines
- Conveyors
- Others

Options (upon request):
- Potential-free input control voltage 10 ... 30VDC
- SAS 3 up to SAS 11: standard up to 480V special voltages 500V up to 640V (all types in 100mm-housing)

PETER ELECTRONIC, SAS (6,5А~45А) SERIES SOFT STARTERS

PETER ELECTRONIC, SAS (6,5А~45А) SERIES SOFT STARTERS typical designation.

- Mains / motor voltage X1-X2 jumpered according to DIN EN 50160 (IEC 38).
160 … 240V ±10 %.
- Mains / motor voltage X1-X2 not jumpered according to DIN EN 50160 (IEC 38.
380 … 480V ±10 %.
- Mains frequency.
50/60Hz.
- Min. motor current.
10% of device rating.
- Starting torque.
0 ... 50%.
- Starting time.
0,5 ... 5s.
- Restart time.
200ms.
- Max. cross-sectional area.
2,5mm²
- Ambient / storage temperature.
0°C ... 45°C / -25°C ... 75°C.

Dimensions:

PETER ELECTRONIC, SAS (6,5А~45А) SERIES SOFT STARTERS DIMENSIONS


Connection Diagram:

PETER ELECTRONIC, SAS (6,5А~45А) SERIES SOFT STARTERS CONNECTION DIAGRAM
