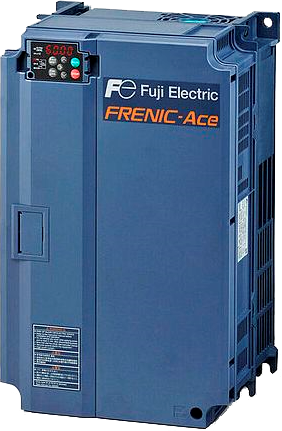

Fuji Electric frequency inverters FRENIC-Ace (FRN E2) multi use series for general purpose

send
Fuji Electric frequency inverters FRENIC-Ace (FRN E2) multi use series for general purpose
The FRENIC-Ace is the inverter that produces excellent cost-performance, maintaining high performance through optimal design. In this way, it can be applied to various machines and devices. The standard inverter for the next generation, the FRENIC-Ace can be used in almost any type of application - from fans and pumps to specialized machinery.
  • 1 phase 200-240 V, capacity from 0,1 kW to 2,2 kW
  • 3 phase 200-240 V, capacity from 0,1 kW to 30 kW
  • 3 phase 380-480 V, capacity from 0,4 kW to 315 kW

Fuji Electric Frenic Ace compact universal series without EMC filter (3 phase 400 V)
Model Voltage,
V
Capacity,
kW
Current,
A
V/f
mode
Enclosure
IPXX
Output frequency,
Hz
Overload capacity,
% per 1 min
Dimensions
(W x H x D), mm
Weight,
kg
Price
FRN0002E2S-4GA 380-480 (3ph) 0,75 / 0,75 / 0,4 2.1 / 1.8 / 1.5 - IP20 25-500 150 110х140х162 1,2 on request
FRN0004E2S-4GA 380-480 (3ph) 1,50 / 1 / 0,75 4.1 / 3.4 / 2.5 - IP20 25-500 150 110х140х186 1,5 on request
FRN0006E2S-4GA 380-480 (3ph) 2,2 / 2,2 / 1,5 5.5 / 5 / 4.2 - IP20 25-500 150 140х140х199 1,5 on request
FRN0007E2S-4GA 380-480 (3ph) 3 / 3 / 2,2 6.9 / 6.3 / 5.5 - IP20 25-500 150 140х140х199 1,6 on request
FRN0012E2S-4GA 380-480 (3ph) 5,5 / 5,5 / 3,7 12 / 11.1 / 9 - IP20 25-500 150 140х140х199 1,9 on request
FRN0022E2S-4E 380-480 (3ph) 11 / 7,5 / 5,5 21.5 / 17.5 / 13 - IP20 25-500 150 180х230х158 5 on request
FRN0029E2S-4E 380-480 (3ph) 15 / 11 / 7,5 28.5 / 23 / 18 - IP20 25-500 150 180х230х158 5 on request
FRN0037E2S-4E 380-480 (3ph) 18,5 / 15 / 11 37 / 31 / 24 - IP20 25-500 150 220х270х190 8 on request
FRN0044E2S-4E 380-480 (3ph) 22 / 18,5 / 15 44 / 38 / 30 - IP20 25-500 150 220х270х190 9 on request
FRN0059E2S-4E 380-480 (3ph) 30 / 22 / 18,5 59 / 45 / 39 - IP20 25-500 150 250х400х195 9,5 on request
FRN0072E2S-4E 380-480 (3ph) 37 / 30 / 22 72 / 60 / 45 - IP20 25-500 150 250х400х195 10 on request
FRN0085E2S-4E 380-480 (3ph) 45 / 37 / 30 85 / 75 / 60 - IP00 25-500 150 326,2х550х261 25 on request
FRN0105E2S-4E 380-480 (3ph) 55 / 45 / 37 105 / 91 / 75 - IP00 25-500 150 326,2х550х261 26 on request
FRN0139E2S-4E 380-480 (3ph) 75 / 55 / 45 139 / 112 / 91 - IP00 25-500 150 361,2х615х276 30 on request
FRN0168E2S-4E 380-480 (3ph) 90 / 75 / 55 168 / 150 / 112 - IP00 25-500 150 361,2х675х276 33 on request
FRN0203E2S-4E 380-480 (3ph) 110 / 90 / 75 203 / 176 / 150 - IP00 25-500 150 361,2х740х276 40 on request
FRN0240E2S-4E 380-480 (3ph) 132 / 110 / 90 240 / 210 / 176 - IP00 25-500 150 536,4х740х321 62 on request
FRN0290E2S-4E 380-480 (3ph) 160 / 132 / 110 290 / 253 / 210 - IP00 25-500 150 536,4х740х321 63 on request
FRN0361E2S-4E 380-480 (3ph) 200 / 160 / 132 361 / 304 / 253 - IP00 25-500 150 536,4х1000х366 95 on request
FRN0415E2S-4E 380-480 (3ph) 220 / 200 / 160 415 / 377 / 304 - IP00 25-500 150 536,4х1000х366 96 on request
FRN0520E2S-4E 380-480 (3ph) 280 / 220 / 200 520 / 415 / 377 - IP00 25-500 150 686,4х1000х366 130 on request
FRN0590E2S-4E 380-480 (3ph) 315 / 250 / 220 590 / 477 / 415 - IP00 25-500 150 686,4х1000х366 140 on request

Fuji Electric Frenic Ace compact universal series with EMC filter (3 phase 400 V)
Model Voltage,
V
Capacity,
kW
Current,
A
V/f
mode
Enclosure
IPXX
Output frequency,
Hz
Overload capacity,
% per 1 min
Dimensions
(W x H x D), mm
Weight,
kg
Price
FRN0002E2E-4GA 380-480 (3ph) 0,75 / 0,75 / 0,4 2.1 / 1.8 / 1.5 - IP20 25-500 150 110х140х162 1,2 on request
FRN0004E2E-4GA 380-480 (3ph) 1,50 / 1 / 0,75 4.1 / 3.4 / 2.5 - IP20 25-500 150 110х140х186 1,5 on request
FRN0006E2E-4GA 380-480 (3ph) 2,2 / 2,2 / 1,5 5.5 / 5 / 4.2 - IP20 25-500 150 140х140х199 1,5 on request
FRN0007E2E-4GA 380-480 (3ph) 3 / 3 / 2,2 6.9 / 6.3 / 5.5 - IP20 25-500 150 140х140х199 1,6 on request
FRN0012E2E-4GA 380-480 (3ph) 5,5 / 5,5 / 3,7 12 / 11.1 / 9 - IP20 25-500 150 140х140х199 1,9 on request
FRN0022E2E-4E 380-480 (3ph) 11 / 7,5 / 5,5 21.5 / 17.5 / 13 - IP20 25-500 150 180х230х158 5 on request
FRN0029E2E-4E 380-480 (3ph) 15 / 11 / 7,5 28.5 / 23 / 18 - IP20 25-500 150 180х230х158 5 on request
FRN0037E2E-4E 380-480 (3ph) 18,5 / 15 / 11 37 / 31 / 24 - IP20 25-500 150 220х270х190 8 on request
FRN0044E2E-4E 380-480 (3ph) 22 / 18,5 / 15 44 / 38 / 30 - IP20 25-500 150 220х270х190 9 on request
FRN0059E2E-4E 380-480 (3ph) 30 / 22 / 18,5 59 / 45 / 39 - IP20 25-500 150 250х400х195 10,5 on request
FRN0072E2E-4E 380-480 (3ph) 37 / 30 / 22 72 / 60 / 45 - IP20 25-500 150 250х400х195 11,2 on request
FRN0085E2E-4E 380-480 (3ph) 45 / 37 / 30 85 / 75 / 60 - IP00 25-500 150 326,2х550х261 26 on request
FRN0105E2E-4E 380-480 (3ph) 55 / 45 / 37 105 / 91 / 75 - IP00 25-500 150 326,2х550х261 27 on request
FRN0139E2E-4E 380-480 (3ph) 75 / 55 / 45 139 / 112 / 91 - IP00 25-500 150 361,2х615х276 31 on request
FRN0168E2E-4E 380-480 (3ph) 90 / 75 / 55 168 / 150 / 112 - IP00 25-500 150 361,2х675х276 33 on request
FRN0203E2E-4E 380-480 (3ph) 110 / 90 / 75 203 / 176 / 150 - IP00 25-500 150 361,2х740х276 40 on request
FRN0240E2E-4E 380-480 (3ph) 132 / 110 / 90 240 / 210 / 176 - IP00 25-500 150 536,4х740х321 62 on request
FRN0290E2E-4E 380-480 (3ph) 160 / 132 / 110 290 / 253 / 210 - IP00 25-500 150 536,4х740х321 63 on request
FRN0361E2E-4E 380-480 (3ph) 200 / 160 / 132 361 / 304 / 253 - IP00 25-500 150 536,4х1000х366 95 on request
FRN0415E2E-4E 380-480 (3ph) 220 / 200 / 160 415 / 377 / 304 - IP00 25-500 150 536,4х1000х366 96 on request
FRN0520E2E-4E 380-480 (3ph) 280 / 220 / 200 520 / 415 / 377 - IP00 25-500 150 686,4х1000х366 130 on request
FRN0590E2E-4E 380-480 (3ph) 315 / 250 / 220 590 / 477 / 415 - IP00 25-500 150 686,4х1000х366 140 on request

Fuji Electric Frenic Ace compact universal series without EMC filter (1 phase 220 V)
Model Voltage,
V
Capacity,
kW
Current,
A
V/f
mode
Enclosure
IPXX
Output frequency,
Hz
Overload capacity,
% per 1 min
Dimensions
(W x H x D), mm
Weight,
kg
Price
FRN0001E2S-7GA 200-240 (1ph) 0,1 0.8 - IP20 25-500 150 - - on request
FRN0002E2S-7GA 200-240 (1ph) 0,2 1.6 - IP20 25-500 150 - - on request
FRN0003E2S-7GA 200-240 (1ph) 0,4 3 - IP20 25-500 150 - - on request
FRN0005E2S-7GA 200-240 (1ph) 0,75 5 - IP20 25-500 150 - - on request
FRN0008E2S-7GA 200-240 (1ph) 1,5 8 - IP20 25-500 150 - - on request
FRN0011E2S-7GA 200-240 (1ph) 2,2 11 - IP20 25-500 150 - - on request

Fuji Electric Frenic Ace compact universal series with EMC filter (1 phase 220 V)
Model Voltage,
V
Capacity,
kW
Current,
A
V/f
mode
Enclosure
IPXX
Output frequency,
Hz
Overload capacity,
% per 1 min
Dimensions
(W x H x D), mm
Weight,
kg
Price
FRN0001E2E-7GA 200-240 (1ph) 0,1 0.8 - IP20 25-500 150 - - on request
FRN0002E2E-7GA 200-240 (1ph) 0,2 1.6 - IP20 25-500 150 - - on request
FRN0003E2E-7GA 200-240 (1ph) 0,4 3 - IP20 25-500 150 - - on request
FRN0005E2E-7GA 200-240 (1ph) 0,75 5 - IP20 25-500 150 - - on request
FRN0008E2E-7GA 200-240 (1ph) 1,5 8 - IP20 25-500 150 - - on request
FRN0011E2E-7GA 200-240 (1ph) 2,2 11 - IP20 25-500 150 - - on request
Technical Information and Features

Customizable Logic

Customizable logic function is available as a standard feature. FRENIC-Ace has built-in customizable logic functions with a maximum of 200 steps including both digital and analog operation functions, giving customers the ability to customize their inverters—from simple logic functions to full-scale programming. Fuji Electric also has plans to offer programming templates for wire drawing machines, hoists, spinning machines, and other applications so that the FRENIC-Ace can be used as a dedicated purpose inverter.

Fuji Electric vfd FRENIC-Ace series hoist crane application example

Superior Flexibility

FRENIC-Ace has readily available interface cards and various types of fieldbus / network to maximize its flexibility.
Fuji Electric drive FRENIC-Ace series has a superior flexibility

Fuji Electric drive FRENIC-Ace series has a Wide Variety Of Functions As A Standard Feature

- Sensorless dynamic torque vector control
- Motor vector control with PG (with optional card)
- Synchronous motor with sensorless vector control
- 2-channel on-board RS485 communications port
- Standard CANopen compatibility
- Removable keypad device
- Removable control terminal block board

Fuji Electric inverter FRENIC-Ace series has multi-function keypad as an option

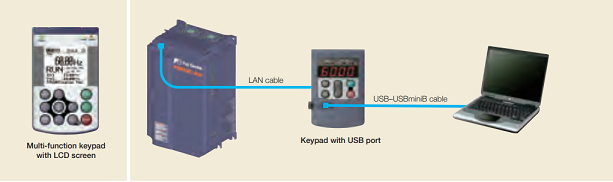

FRENIC-Ace has two different multi-function keypads available
- Multi-function keypad with LCD display: Enhanced HMI functionality
- Keypad with USB port : Connect to a computer for more efficient operation (set-up, troubleshooting, maintenance, etc)

Fuji Electric inverter FRENIC-Ace series has multi-function keypad as an option

Fuji Electric frequency inverter FRENIC-Ace series is equipped with Functional Safety

FRENIC-Ace is equipped with STO functional safety function as a standard. Therefore output circuit magnetic contactors are not required for safe stop implementation. Enhanced standard features position FRENIC-Ace ahead of its class (Safety input: 2CH, output: 1CH).

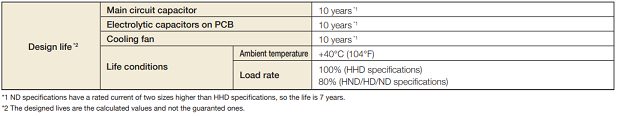

10 Years Lifetime Design

FRENIC-Ace components have a design life of ten years. A longer maintenance cycle also helps to reduce running costs.
Fuji Electric drive FRENIC-Ace series components have a design life of ten years
