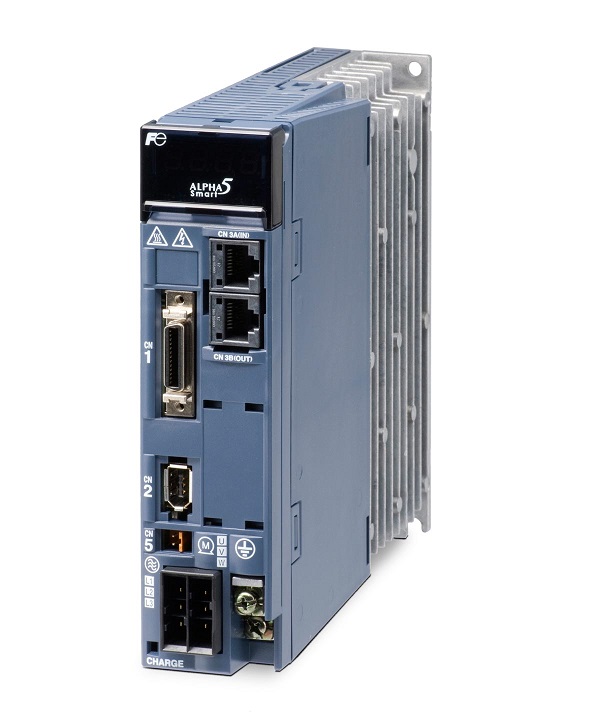

Fuji Electric, Alpha 5 Smart series servo system

Alpha 5 Smart is produced for smart users. This servo system will enable your machines to have smart adjustment, smart design and smart operations anytime anywhere. Advanced auto-tuning function and robust performance for unprecedented smart adjustment will create high efficiency as well as great performance in your production system.

Smart adjustment: Advanced auto-tuning function and robust performance for unprecedented smart adjustment
Smart design: Inherits the main features of ALPHA5. Highly adaptable smart design
Smart operation: The new Servo Operator allows smart operation anytime anywhere
High Performance: High-speed, high-precision positioning
Frequency response 1500 Hz
Max motor speed 6000 r / min
High-resolution encoder
18-bit ABS/INC 262,144 pulses
20-bit INC 1,048,576 pulses
High Value: Higher cost-performance with original main features
High Usability: New servo operator offers improved usability

FUJI ELECTRIC, ALPHA 5 SMART SERIES SERVO SYSTEM

Technical Information and Features

Fuji Electric, Alpha 5 Smart series servo system

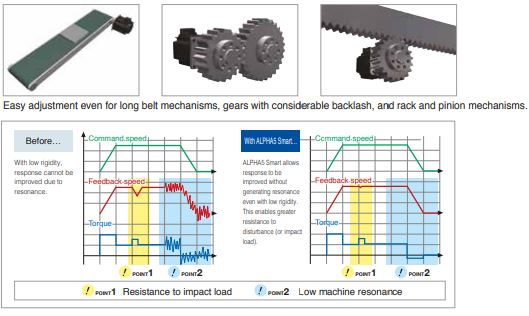

Wide range of applications.
With the new auto-tuning function, optimal tuning can be realized even for low-rigidity devices.

FUJI ELECTRIC, ALPHA 5 SMART SERIES SERVO SYSTEM

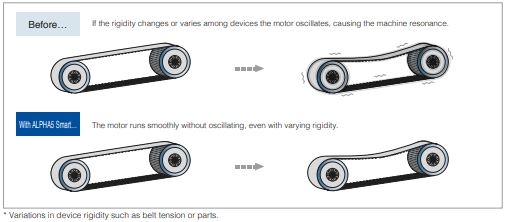

Super stability.
Smooth, stable operation even with changes due to wear or variation* among devices.

FUJI ELECTRIC, ALPHA 5 SMART SERIES SERVO SYSTEM SMOOTH

Other features.
- Smart operation.
New handy-sized portable servo operator makes the operation much smarter.
- Long-life design.
- Easy ABS battery replacement.
ABS backup battery can be mounted on front face of servo amplifier for easy replacement.
- Regulatory compliance.

FUJI ELECTRIC, ALPHA 5 SMART SERIES SERVO SYSTEM Smart design.

PTP positioning. - Positioning function built in as standard.
- No external units or special equipment required for positioning.

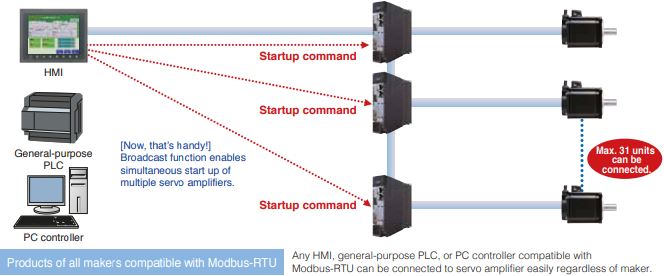

Simple operation via Modbus-RTU communications.
Modbus-RTU communications enables PTP positioning, parameter editing, and the use of various monitors. Just connect an HMI, general-purpose PLC, or PC controller directly to the servo amplifier.

FUJI ELECTRIC, ALPHA 5 SMART SERIES SERVO SYSTEM Smart design.

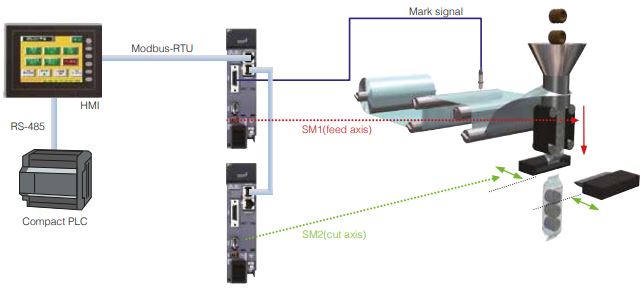

FUJI ELECTRIC, ALPHA 5 SMART SERIES SERVO SYSTEM packaging machine.

- Servo amplifier features a built-in positioning function.
The servo amplifier’s positioning data enables film feeding without the positioning controller.
- Less wiring required
Wiring requires fewer man-hours as basic positioning is carried out via Modbus-RTU communications.
- Interrupted positioning
The interrupted positioning function allows a specified amount of travel after the mark is detected for more precise mark operation

Conveyor.
Workpiece feeder, carrier, etc.
- The positioning data enables
positioning without a PLC.
- Enables simultaneous operation.
- Enables rapid acceleration/deceleration and high-speed operation.
- Enables high-accuracy positioning.
- High-tact operation mode allows high-frequency operation.

XY Table.
Engraving machine, 2D positioning unit, etc.
- The positioning data enables positioning without a PLC.
- Enables rapid acceleration/deceleration and high-speed operation.
- Enables high-accuracy positioning.
- Trace operation mode allows optimal operation.
